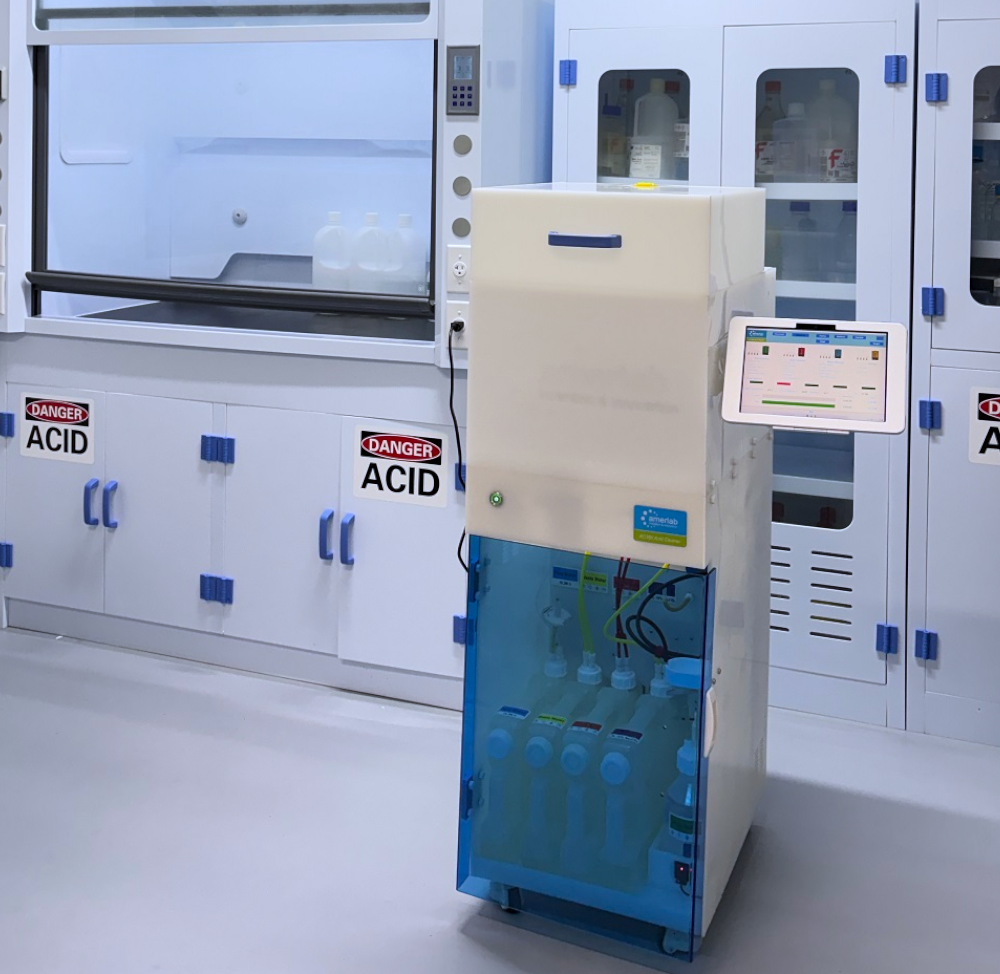

Amerlab AC360-Semi Acid Steam Vapor Ultra Cleaning System or Acid Cleaner for microwave digetstion vessels in Trace Metal Analysis

Acid Steam Traceclean Milestone - AC360 Semi

What Acid Cleaner Does?

Clean labware is crucial for accurate trace metal analysis, but traditional cleaning methods like acid soaking and microwave digestion are time-consuming and leave behind residue. Introducing the solution you've been waiting for: acid steam cleaning.

The acid cleaner is also known as Labware Acid Steam/Vapor Cleaning System or Trace Cleaning System. It uses acid vapor to clean the vessels in a sealed chamber. Through a built-in temperature-control heating system, all trace metal contaminants that are soluble in acid can be safely and efficiently removed by acid vapor. The used acid will then be drained from the chamber to prevent the extracted contaminants from being reintroduced to the cleaned vessels.

The AC360-Semi system marks a milestone in acid steam traceclean milestone washing. This advanced system ensures thorough and efficient cleaning, setting a new standard in the industry.



Why acid cleaning?

Cleaning Without The Hassle​!

INVENTION & INNOVATION

In 2015, Amerlab set the bar for labware cleaning with the AC100 Auto Cleaner which offered a unique three-in-one unit capable of automated acid cleaning, rinsing and drying. This innovation offered new levels of efficiency and quality control and was highly praised by the market.

Today, Amerlab is pleased to offer the new generation of our Acid Steam Trace Clean Milestone Cleaning System - AC360, which combines the best of our previous model and many other innovative functions.

ACID STEAM TRACECLEAN MILESTONE


  • Automatic filling

*  Automatic draining

*  Dual pump systems to avoid contamination

*  Wetted PTFE/PFA Material

*  Integrated fume hood



Fill CLEAN ACID:

The pressure pump pushes filtered air into the clean acid bottle, pressurizing it to dispense acid into the reservoir.
• Avoids direct contact with acid
• Prevents contamination

ACID VAPOR CLEANING:

Ultrapure acid vapor is generated gently during the sub-boiling.
• Automatically vents excessive vapor
• Automatically stops once the timer expires.

DRAIN WASTE ACID:

The acid can be reused until the bad analytical blank is observed.
At this time,  the second pump draws acid from the reservoir by vacuuming the used acid bottle.
• Avoids direct contact with acid
• Automatically vents waste vapor

The patented core tech provides guaranteed thoroughness

US PATENT: US10,864,560

REAL TEMPERATURE CONTROL(RTC)

ensures the highest purity of acid vapor

Accurate measurement is crucial for precise control.
The Teflon-treated sensor directly monitors the actual acid temperature in real time which ensures an ideal sub-boiling condition.
Traditional cleaners only monitor the heater’s temperature. This results in less accuracy of the measuring, less control of the acid temperature and lower purity of the acid vapor/steam.

More than a simple cleaning

Better Materials

Made of PTFE

MORE DURABLE, MORE VERSATILE

Digestion often involves HF. PTFE can resist all kinds of acids including HF & aqua regia.
There is no quartz containing ppm level metal elements that is unable to resist HF.
Please refer to this link:

Seamless Construction

NO DEAD CORNERS & NEVER CRACK

The cleaning chamber is an integrated
unibody which will withstand many
decades of simultaneous hot acid and
high temperature.

Polypropylene Chassis

CORROSION RESISTANT AND NO METAL

The chassis is welded with polypropylene boards. It has strong corrosion resistance. Additionally, PP material does not release metal elements into the laboratory and also does not compromise the low
background in the trace element analysis laboratories.

Safer

PTC Heating

The Safest Heaters!  No Supervision Needed

Under the unlikely event that all temperature control systems have failed, the maximum temperature is autonomously controlled by the heater and will not exceed 482 oF which prevents damage and risk of
fire.
PTC heater might be the best kind for Acid Steam/Vapor Cleaing.

Built-in Fume Hood

Eliminates the worries about emission

Our AC360-Semi comes with a fume hood. Just connect the exhausting duct to the lab vent system. It saves huge valuable space in your existing hood.

Waste Vapor Is Collected

Avoids lab vent system from corrosion

The excessive vapor has to be vented to avoid overpressure during the process.
The vapor is released through the ventilation port on the chamber's lid and condensed and collected in the glass bottle. Only a few leftovers go into the fume hood.

Various Racks

Advanced & Wide Use

Customizable

In contrast to typical support rods, Amerlab’s is far more capable of guiding maximal steam.

Its unique hollow steam pipe’s spray reaches the inner vessel through jet holes.

Interchangeable racks allow for cleaning larger variety of vessels – from 5ml volumetric flasks to 2 liter
beakers.

General Cleaning Racks

Suitable for any vessel with ID > 15 mm

Microwave Digestion Liners

Hot Block Digestion Tubes

Centrifuge Tubes

Top Tray for Stoppers or Caps



Thinner Steam Pipe Rack

Suitable for 77 x thinner tubes with ID>10mm

15mL Centrifuge Tubes

15mL Hot Block Digestion Tubes

15mL UltraWave Digestion Tubes (Quartz or PTFE)

Ultra Wave Digestion Tubes Rack

10 x 50 mL + 60 x 15 mL

Quartz or PTFE Tubes

Top Tray for Stoppers or Caps

Volumetric Flask Cleaning Rack

5/10/25/50/100mL

Customizable

Simple Operation

Amerlab AC360-Semi Acid Steam Vapor Ultra Cleaning System or Acid Cleaner for Trace Metal Analysis

Intuitive and fast setup

One-touch start

Model Differentiation

Acid Steam TraceClean Milestone Cleaning System

Documents Download



Brochure:

Brochure_AC360-Semi Acid Steam Trace Clean Milestone Cleaning System

Technical Notes:

Tech Note -AC-1- Cleaning Performance of The Amerlab Labware Acid Steam Cleaning System Compared to Acid Soaking

Tech Note -AC-2- Advantages of Labware Acid Steam Cleaning System Over Microwave Blank Digestion

Tech Note -AC-3- Real Temperature Control (RTC) in Labware Acid Steam Cleaning

Tech Note -AC-4- One-Way Vapor (OWV)  technology

Tech Note -AC-5-Cleaning Performance of The soil sample

Tech Note -AC-6-How does the user compare the cleaning performance
